条形光源
产品概述
条形光源采用高亮φ5LED矩形排列,安装角度和距离灵活多变，适合各种视野照明。LED排数有2.4.8 排,发光长度从25mm到1100mm有多种规格可选，最长达2200mm需定制。
应用领域
包装字符检测
液晶面板检测
PCB板检测
连接器尺寸检测
智能物流仓储
汽车电器缺失检测
汽车内饰检测
表面缺陷检测
照射原理
型号规格参数
|
产品型号 |
LED排数 |
发光尺寸 |
外形尺寸 |
功率 |
功率 |
可选配件 |
|
(长*宽mm) |
(长*宽mm) |
|
|
(漫射板/偏振片) |
||
|
GHL25-X |
2排 |
25x15 |
35x23 |
0.5 |
|
DF/DFB/PL |
|
GHL50-X |
2排 |
48x15 |
58x23 |
1 |
|
DF/DFB/PL |
|
GHL70-X |
2排 |
70x15 |
80x23 |
1.5 |
1 |
DF/DFB/PL |
|
GHL96-X |
2排 |
95x15 |
105x23 |
2 |
|
DF/DFB/PL |
|
GHL120-X |
2排 |
119x15 |
129x23 |
2.5 |
|
DF/DFB/PL |
|
GHL140-X |
2排 |
140x15 |
150x23 |
3 |
2 |
DF/DFB/PL |
|
GHL165-X |
2排 |
165x15 |
175x23 |
3.5 |
|
DF/DFB/PL |
|
GHL190-X |
2排 |
189x15 |
199x23 |
4 |
|
DF/DFB/PL |
|
GHL210-X |
2排 |
210x15 |
220x23 |
4.5 |
3 |
DF/DFB/PL |
|
GHL240-X |
2排 |
236x15 |
246x23 |
5 |
|
DF/DFB/PL |
|
GHL260-X |
2排 |
259x15 |
269x23 |
5.5 |
|
DF/DFB/PL |
|
GHL280-X |
2排 |
280x15 |
290x23 |
6 |
4 |
DF/DFB/PL |
|
GHL305-X |
2排 |
306x15 |
316x23 |
6.5 |
|
DF/DFB/PL |
|
GHL330-X |
2排 |
330x15 |
340x23 |
7 |
|
DF/DFB/PL |
|
GHL350-X |
2排 |
353x15 |
363x23 |
7.5 |
5 |
DF/DFB/PL |
|
GHL380-X |
2排 |
376x15 |
386x23 |
8 |
|
DF/DFB/PL |
|
GHL400-X |
2排 |
400x15 |
410x23 |
8.5 |
|
DF/DFB/PL |
|
GHL420-X |
2排 |
420x15 |
430x23 |
9 |
6 |
DF/DFB/PL |
|
GHL450-X |
2排 |
447x15 |
457x23 |
9.5 |
|
DF/DFB/PL |
|
GHL470-X |
2排 |
470x15 |
480x23 |
10 |
|
DF/DFB/PL |
|
GHL490-X |
2排 |
490x15 |
500x23 |
10.5 |
7 |
DF/DFB/PL |
|
GHL520-X |
2排 |
517x15 |
527x23 |
11 |
|
DF/DFB/PL |
|
GHL540-X |
2排 |
540x15 |
550x23 |
11.5 |
|
DF/DFB/PL |
|
GHL560-X |
2排 |
564x15 |
574x23 |
12 |
8 |
DF/DFB/PL |
|
GHL590-X |
2排 |
587x15 |
597x23 |
12.5 |
|
DF/DFB/PL |
|
GHL610-X |
2排 |
610x15 |
620x23 |
13 |
|
DF/DFB/PL |
|
GHL635-X |
2排 |
634x15 |
644x23 |
13.5 |
9 |
DF/DFB/PL |
|
GHL660-X |
2排 |
657x15 |
667x23 |
14 |
|
DF/DFB/PL |
|
GHL680-X |
2排 |
681x15 |
691x23 |
14.5 |
|
DF/DFB/PL |
|
GHL705-X |
2排 |
704x15 |
714x23 |
15 |
10 |
DF/DFB/PL |
|
GHL730-X |
2排 |
727x15 |
737x23 |
15.5 |
|
DF/DFB/PL |
|
GHL750-X |
2排 |
751x15 |
761x23 |
16 |
|
DF/DFB/PL |
|
GHL775-X |
2排 |
774x15 |
784x23 |
16.5 |
11 |
DF/DFB/PL |
|
GHL800-X |
2排 |
798x15 |
808x23 |
17 |
|
DF/DFB/PL |
|
GHL820-X |
2排 |
821x15 |
831x23 |
17.5 |
|
DF/DFB/PL |
|
GHL845-X |
2排 |
844x15 |
854x23 |
18 |
12 |
DF/DFB/PL |
|
GHL870-X |
2排 |
868x15 |
878x23 |
18.5 |
|
DF/DFB/PL |
|
GHL890-X |
2排 |
891x15 |
901x23 |
19 |
|
DF/DFB/PL |
|
GHL915-X |
2排 |
915x15 |
925x23 |
19.5 |
13 |
DF/DFB/PL |
|
GHL940-X |
2排 |
938x15 |
948x23 |
20 |
|
DF/DFB/PL |
|
GHL960-X |
2排 |
961x15 |
971x23 |
20.5 |
|
DF/DFB/PL |
|
GHL985-X |
2排 |
985x15 |
995x23 |
21 |
14 |
DF/DFB/PL |
|
GHL1010-X |
2排 |
1008x15 |
1018x23 |
21.5 |
|
DF/DFB/PL |
|
GHL1030-X |
2排 |
1032x15 |
1042x23 |
22 |
|
DF/DFB/PL |
|
GHL1050-X |
2排 |
1055x15 |
1065x23 |
22.5 |
15 |
DF/DFB/PL |
|
GHL1080-X |
2排 |
1078x15 |
1088x23 |
23 |
|
DF/DFB/PL |
|
GHL1100-X |
2排 |
1100x15 |
1110x23 |
23.5 |
|
DF/DFB/PL |
|
GHL15D-X |
4排 |
14x25 |
24x33 |
0.5 |
|
DF/DFB/PL |
|
GHL25D-X |
4排 |
25x25 |
35x33 |
1 |
|
DF/DFB/PL |
|
GHL40D-X |
4排 |
37x25 |
47x33 |
1.5 |
|
DF/DFB/PL |
|
GHL50D-X |
4排 |
48x25 |
58x33 |
2 |
|
DF/DFB/PL |
|
GHL60D-X |
4排 |
61x25 |
71x33 |
2.5 |
|
DF/DFB/PL |
|
GHL70D-X |
4排 |
70x25 |
80x33 |
3 |
2 |
DF/DFB/PL |
|
GHL85D-X |
4排 |
84x25 |
94x33 |
3.5 |
|
DF/DFB/PL |
|
GHL95D-X |
4排 |
96x25 |
106x33 |
4 |
|
DF/DFB/PL |
|
GHL110D-X |
4排 |
107x25 |
117x33 |
4.5 |
|
DF/DFB/PL |
|
GHL120D-X |
4排 |
119x25 |
129x33 |
5 |
|
DF/DFB/PL |
|
GHL130D-X |
4排 |
131x25 |
141x33 |
5.5 |
|
DF/DFB/PL |
|
GHL140D-X |
4排 |
142x25 |
152x33 |
6 |
4 |
DF/DFB/PL |
|
GHL150D-X |
4排 |
154x25 |
164x33 |
6.5 |
|
DF/DFB/PL |
|
GHL165D-X |
4排 |
166x25 |
176x33 |
7 |
|
DF/DFB/PL |
|
GHL175D-X |
4排 |
178x25 |
188x33 |
7.5 |
|
DF/DFB/PL |
|
GHL185D-X |
4排 |
189x25 |
199x33 |
8 |
|
DF/DFB/PL |
|
GHL200D-X |
4排 |
201x25 |
211x33 |
8.5 |
|
DF/DFB/PL |
|
GHL210D-X |
4排 |
213x25 |
223x33 |
9 |
6 |
DF/DFB/PL |
|
GHL220D-X |
4排 |
224x25 |
234x33 |
9.5 |
|
DF/DFB/PL |
|
GHL235D-X |
4排 |
236x25 |
246x33 |
10 |
|
DF/DFB/PL |
|
GHL250D-X |
4排 |
248x25 |
258x33 |
10.5 |
|
DF/DFB/PL |
|
GHL260D-X |
4排 |
259x25 |
269x33 |
11 |
|
DF/DFB/PL |
|
GHL270D-X |
4排 |
271x25 |
281x33 |
11.5 |
|
DF/DFB/PL |
|
GHL280D-X |
4排 |
283x25 |
293x33 |
12 |
8 |
DF/DFB/PL |
|
GHL290D-X |
4排 |
295x25 |
305x33 |
12.5 |
|
DF/DFB/PL |
|
GHL305D-X |
4排 |
306x25 |
316x33 |
13 |
|
DF/DFB/PL |
|
GHL320D-X |
4排 |
318x25 |
328x33 |
13.5 |
|
DF/DFB/PL |
|
GHL330D-X |
4排 |
330x25 |
340x33 |
14 |
|
DF/DFB/PL |
|
GHL340D-X |
4排 |
341x25 |
351x33 |
14.5 |
|
DF/DFB/PL |
|
GHL350D-X |
4排 |
353x25 |
363x33 |
15 |
10 |
DF/DFB/PL |
|
GHL365D-X |
4排 |
365x25 |
375x33 |
15.5 |
|
DF/DFB/PL |
|
GHL375D-X |
4排 |
376x25 |
386x33 |
16 |
|
DF/DFB/PL |
|
GHL390D-X |
4排 |
388x25 |
398x33 |
16.5 |
|
DF/DFB/PL |
|
GHL400D-X |
4排 |
400x25 |
410x33 |
17 |
|
DF/DFB/PL |
|
GHL410D-X |
4排 |
411x25 |
421x33 |
17.5 |
|
DF/DFB/PL |
|
GHL425D-X |
4排 |
423x25 |
433x33 |
18 |
12 |
DF/DFB/PL |
|
GHL435D-X |
4排 |
435x25 |
445x33 |
18.5 |
|
DF/DFB/PL |
|
GHL450D-X |
4排 |
447x25 |
457x33 |
19 |
|
DF/DFB/PL |
|
GHL460D-X |
4排 |
458x25 |
468x33 |
19.5 |
|
DF/DFB/PL |
|
GHL470D-X |
4排 |
470x25 |
480x33 |
20 |
|
DF/DFB/PL |
|
GHL480D-X |
4排 |
482x25 |
492x33 |
20.5 |
|
DF/DFB/PL |
|
GHL495D-X |
4排 |
493x25 |
503x33 |
21 |
14 |
DF/DFB/PL |
|
GHL505D-X |
4排 |
505x25 |
515x33 |
21.5 |
|
DF/DFB/PL |
|
GHL520D-X |
4排 |
517x25 |
527x33 |
22 |
|
DF/DFB/PL |
|
GHL530D-X |
4排 |
529x25 |
539x33 |
22.5 |
|
DF/DFB/PL |
|
GHL540D-X |
4排 |
540x25 |
550x33 |
23 |
|
DF/DFB/PL |
|
GHL550D-X |
4排 |
552x25 |
562x33 |
23.5 |
|
DF/DFB/PL |
|
GHL565D-X |
4排 |
564x25 |
574x33 |
24 |
16 |
DF/DFB/PL |
|
GHL575D-X |
4排 |
575x25 |
585x33 |
24.5 |
|
DF/DFB/PL |
|
GHL590D-X |
4排 |
587x25 |
597x33 |
25 |
|
DF/DFB/PL |
|
GHL600D-X |
4排 |
599x25 |
609x33 |
25.5 |
|
DF/DFB/PL |
|
GHL610D-X |
4排 |
610x25 |
620x33 |
26 |
|
DF/DFB/PL |
|
GHL625D-X |
4排 |
622x25 |
632x33 |
26.5 |
|
DF/DFB/PL |
|
GHL650D-X |
4排 |
646x25 |
656x33 |
27.5 |
|
DF/DFB/PL |
|
GHL660D-X |
4排 |
657x25 |
667x33 |
28 |
|
DF/DFB/PL |
|
GHL670D-X |
4排 |
669x25 |
679x33 |
28.5 |
|
DF/DFB/PL |
|
GHL680D-X |
4排 |
681x25 |
691x33 |
29 |
|
DF/DFB/PL |
|
GHL690D-X |
4排 |
692x25 |
702x33 |
29.5 |
|
DF/DFB/PL |
|
GHL705D-X |
4排 |
704x25 |
714x33 |
30 |
20 |
DF/DFB/PL |
|
GHL720D-X |
4排 |
716x25 |
726x33 |
30.5 |
|
DF/DFB/PL |
|
GHL730D-X |
4排 |
727x25 |
737x33 |
31 |
|
DF/DFB/PL |
|
GHL740D-X |
4排 |
739x25 |
749x33 |
31.5 |
|
DF/DFB/PL |
|
GHL750D-X |
4排 |
751x25 |
761x33 |
32 |
|
DF/DFB/PL |
|
GHL765D-X |
4排 |
763x25 |
773x33 |
32.5 |
|
DF/DFB/PL |
|
GHL775D-X |
4排 |
774x25 |
784x33 |
33 |
22 |
DF/DFB/PL |
|
GHL790D-X |
4排 |
786x25 |
796x33 |
33.5 |
|
DF/DFB/PL |
|
GHL800D-X |
4排 |
798x25 |
808x33 |
34 |
|
DF/DFB/PL |
|
GHL810D-X |
4排 |
809x25 |
819x33 |
34.5 |
|
DF/DFB/PL |
|
GHL820D-X |
4排 |
821x25 |
831x33 |
35 |
|
DF/DFB/PL |
|
GHL835D-X |
4排 |
833x25 |
843x33 |
35.5 |
|
DF/DFB/PL |
|
GHL845D-X |
4排 |
844x25 |
854x33 |
36 |
24 |
DF/DFB/PL |
|
GHL860D-X |
4排 |
856x25 |
866x33 |
36.5 |
|
DF/DFB/PL |
|
GHL870D-X |
4排 |
868x25 |
878x33 |
37 |
|
DF/DFB/PL |
|
GHL880D-X |
4排 |
880x25 |
890x33 |
37.5 |
|
DF/DFB/PL |
|
GHL890D-X |
4排 |
891x25 |
901x33 |
38 |
|
DF/DFB/PL |
|
GHL905D-X |
4排 |
903x25 |
913x33 |
38.5 |
|
DF/DFB/PL |
|
GHL915D-X |
4排 |
915x25 |
925x33 |
39 |
26 |
DF/DFB/PL |
|
GHL930D-X |
4排 |
926x25 |
936x33 |
39.5 |
|
DF/DFB/PL |
|
GHL940D-X |
4排 |
938x25 |
948x33 |
40 |
|
DF/DFB/PL |
|
GHL950D-X |
4排 |
950x25 |
960x33 |
40.5 |
|
DF/DFB/PL |
|
GHL960D-X |
4排 |
961x25 |
971x33 |
41 |
|
DF/DFB/PL |
|
GHL975D-X |
4排 |
973x25 |
983x33 |
41.5 |
|
DF/DFB/PL |
|
GHL985D-X |
4排 |
985x25 |
995x33 |
42 |
28 |
DF/DFB/PL |
|
GHL1000D-X |
4排 |
997x25 |
1007x33 |
42.5 |
|
DF/DFB/PL |
|
GHL1010D-X |
4排 |
1008x25 |
1018x33 |
43 |
|
DF/DFB/PL |
|
GHL1020D-X |
4排 |
1020x25 |
1030x33 |
43.5 |
|
DF/DFB/PL |
|
GHL1035D-X |
4排 |
1032x25 |
1042x33 |
44 |
|
DF/DFB/PL |
|
GHL1045D-X |
4排 |
1043x25 |
1053x33 |
44.5 |
|
DF/DFB/PL |
|
GHL1055D-X |
4排 |
1055x25 |
1065x33 |
45 |
30 |
DF/DFB/PL |
|
GHL1070D-X |
4排 |
1067x25 |
1077x33 |
45.5 |
|
DF/DFB/PL |
|
GHL1080D-X |
4排 |
1078x25 |
1088x33 |
46 |
|
DF/DFB/PL |
|
GHL1090D-X |
4排 |
1090x25 |
1100x33 |
46.5 |
|
DF/DFB/PL |
|
GHL1100D-X |
4排 |
1102x25 |
1112x33 |
47 |
|
DF/DFB/PL |
|
GHL70Q-XXX |
8排 |
70x52 |
80x60 |
7W |
4W |
DF/DFB/PL |
|
GHL140Q-XXX |
8排 |
140x52 |
150x60 |
14W |
8W |
DF/DFB/PL |
|
GHL210Q-XXX |
8排 |
210x52 |
220x60 |
21W |
12W |
DF/DFB/PL |
|
GHL280Q-XXX |
8排 |
280x52 |
290x60 |
28W |
16W |
DF/DFB/PL |
|
GHL316Q-XXX |
8排 |
316x52 |
326x60 |
31.5W |
21W |
DF/DFB/PL |

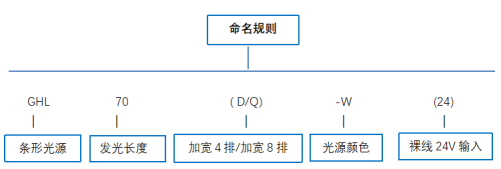

1.产品型号中X ,代表标准LED颗粒，颜色有：R（红）、G（绿）、B（蓝）、W（B）,黄色也可提供。红外、紫外另外列出。
2.还可提供小角度版本，比标准版本LED颗粒的发散角度更小，光线更加汇聚。如GHL210-W为标准版本，GHL210-NW 为小角度版本,都是白色,后者亮度高出30-50% ,照射区域稍小，而前者均匀性更佳。
